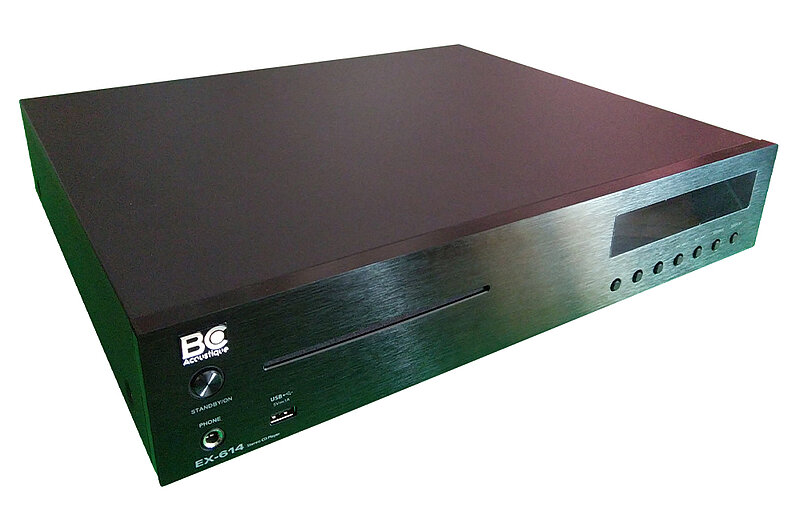

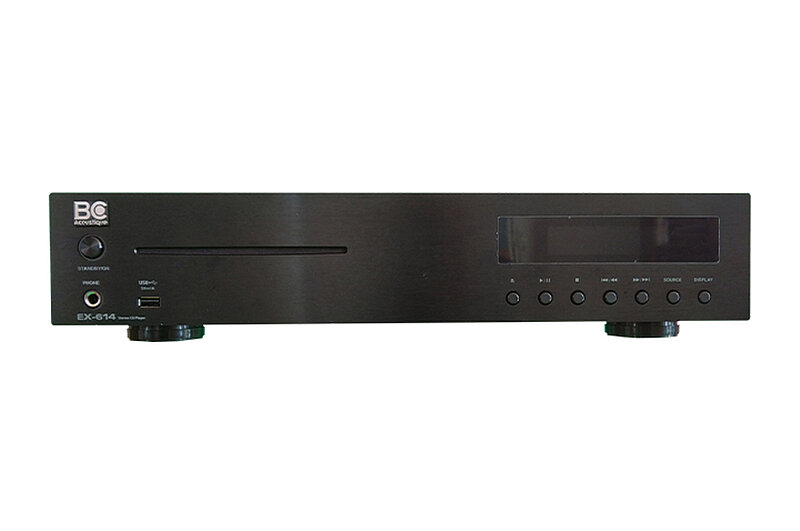

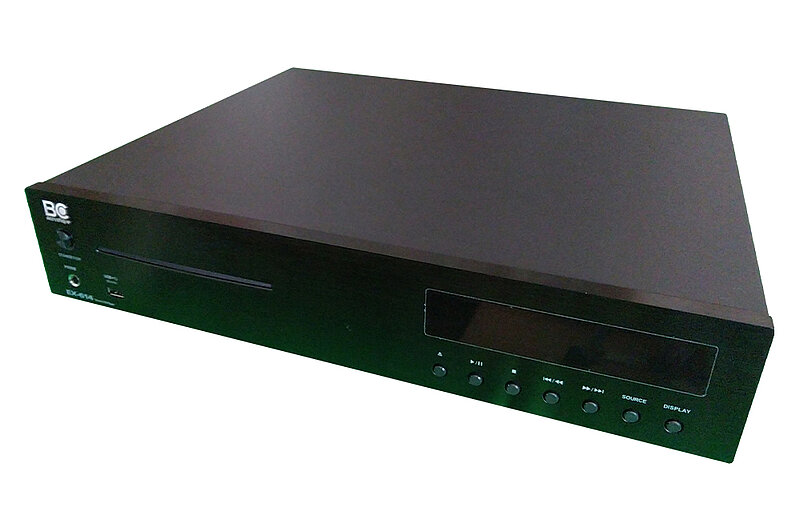

EX-614 CD & USB PLAYER

The mechanism is Slot-In type, which means that the CD is inserted into a slot on the front panel. Professionally designed, it is found on many CD players of the most famous brands, generally at much higher prices.

The EX-614 is capable of playing all CD-R/W and MP3 files up to 320Kbps. It features a digital-to-analogue audio converter delivering high quality music.

MAIN FEATURES

  • Ultra rigid frame for better mechanical stability
  • USB connector (MP3) on front panel
  • Digital outputs: Optical and Coaxial
  • Professional low noise switch mode power supply
  • Separate controllers for digital and analog sections

Included Accessories
1x Detachable IEC power cord
1x Remote control
2x Batteries
1x Manual

DAC : The interface to the S/PDIF inputs is provided by an AK4432 chip. Maximum sampling is 32 bits at 192 kHz on both coaxial and optical inputs.

Level output: 2.0V
Bandwidth :
(ref. 0dB, 20Hz - 20kHz): +0.5dB Total harmonic distortion:
(ref. 1kHz): <0.005%.
Signal to noise ratio (A, ref. 1kHz): 108dB
Balance between channels:
(Ref. 0dB, 1kHz): +0.5dB
Dynamic range: 96dB
Channel separation :
95dB (1kHz - 10kHz)
Supported formats on CD and USB (FAT32) : MP3 up to 320 Kbps

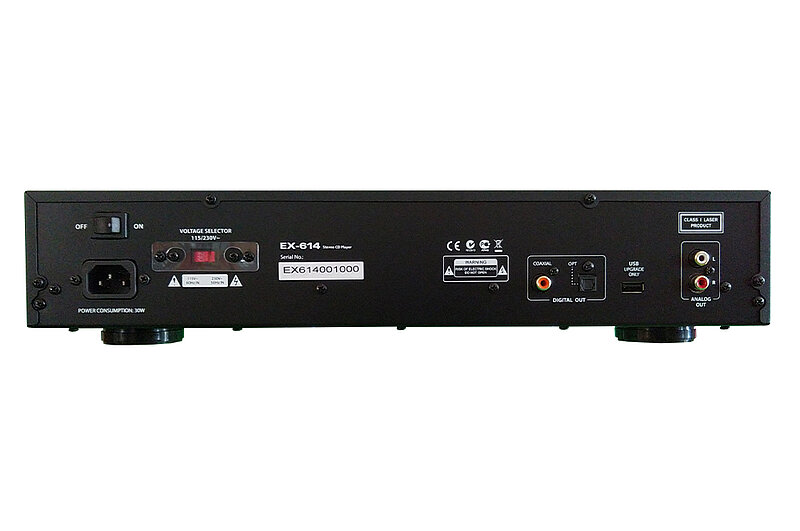

Connectors
1x USB Connector (en façade) 1x Analog Output( RCA)
1x Coaxial Digital Output (RCA) 1x Optical Digital Output
1x Headphone Output (6,35mm jack) 1x USB Connector on rear panel (for firmware updates)
1x IEC Power Plug

Dimensions (LxHxP) : 430x80x356mm
Weight : 5,3Kg

Black
